Product Detail

electric portable stage with plywood panel 1.22x2.44m

Model : X-MST-01
price : $800/pc
size : 1.22*2.44M
Detail

本品為專(zhuān)利產(chǎn)品,仿冒必究!(This product is a patented product, counterfeiting will be investigated!)

Product specifications: 1.22 meters * 2.44 meters, height 0.5 meters, can be raised to 1.1 meters, can be stopped at any height.

Product advantages:

Stage electric lift

2. The product is light, high load bearing, stable and safe

3. At the event site, free to lift and meet the performance requirements

4. Support several hundred square stage synchronous lifting

5. High load bearing, safe and stable




This product is suitable for: indoors, hotels, stadiums, shopping malls, outdoor performances, concerts and other indoor and outdoor activities.

Site requirements: Indoor, outdoor concrete, grass, stage installation must be leveled, rubber feet can be used on uneven feet.

usage notice:

1. When changing the lift, please wait for 3 seconds.

2. Dynamic load-bearing 400KG/sheet, static load-bearing 1500KG/sheet

3. The product is waterproof and non-slip.

4. This product contains motor. It is forbidden to throw and throw the product during the handling and installation process, otherwise the motor will not be guaranteed.

5. The lifting column is forbidden to be dismantled. The offender is not guaranteed.







The product is made of high quality aluminum welded, the panel is super thick splint, the surface is non-slip and waterproof.



Designed before use, you need to adjust the modules that need to be raised. Can only lift 2 blocks in the middle, and can lift all at the same time。

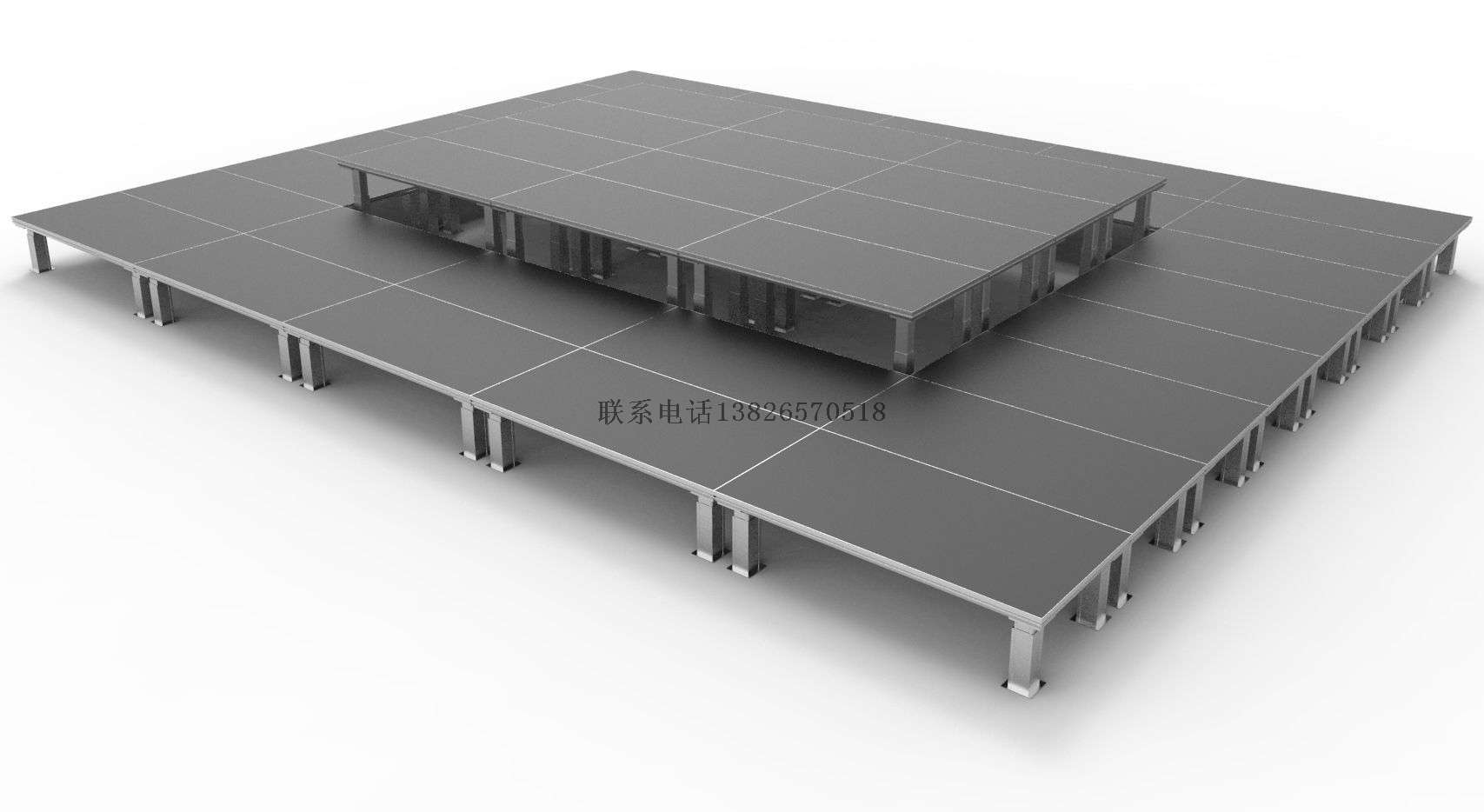

It is also possible to raise the middle 12 blocks to support simultaneous lifting.0_14.jpg

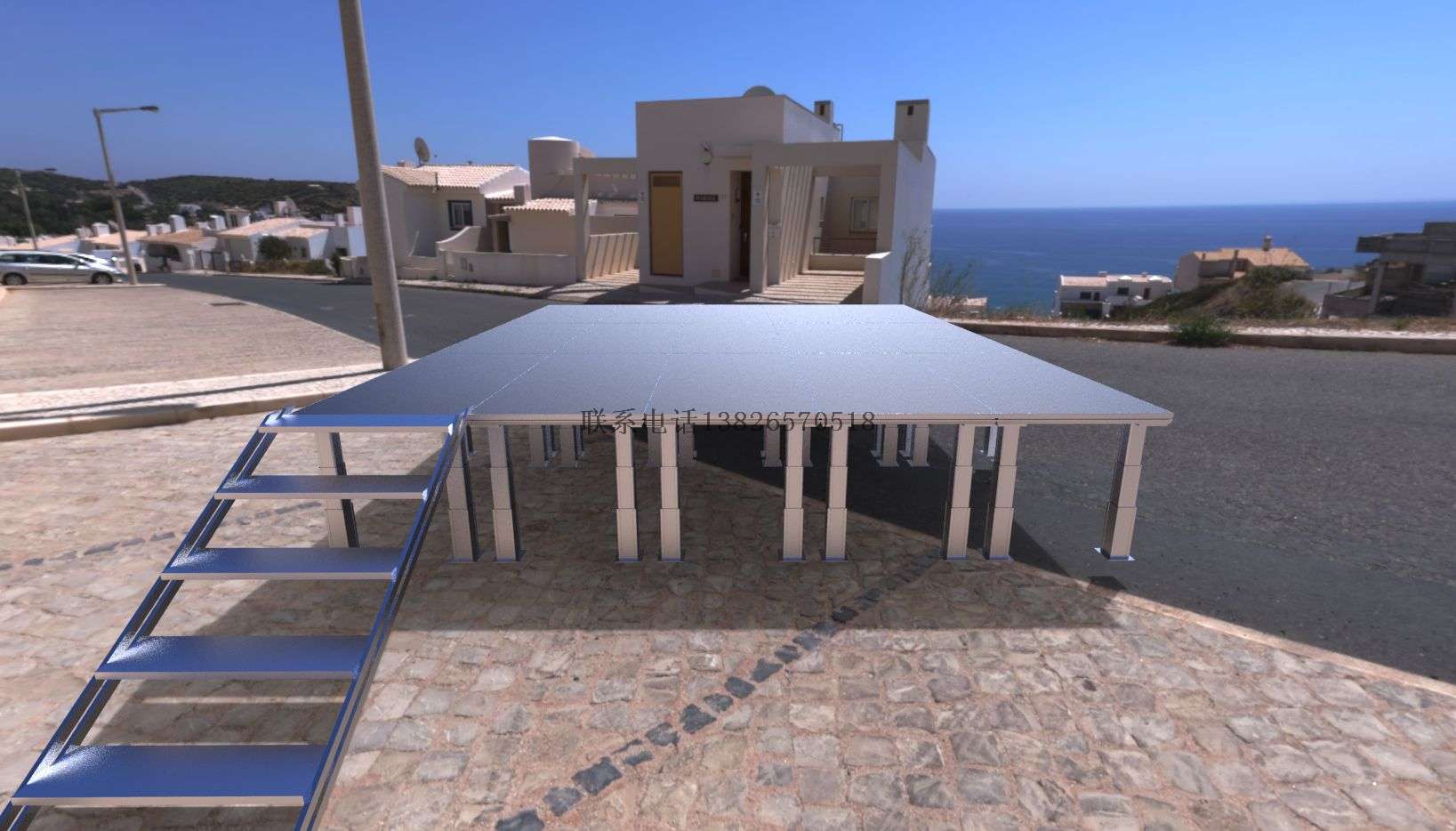

It can also be used as a chorus, raising different heights to meet the needs of group photos or performances.0_15.jpg
